Khoom Description
VM-H hyperboloid agitator yog qhov ua tau zoo - cov khoom sib xyaw ua haujlwm tshwj xeeb tsim los rau kev siv dej khib nyiab, dav siv hauv cov tso tsheb hlau luam, oxidation ditches, sludge tanks, cov tank sib npaug, thiab cov tshuab kho dej khib nyiab. Featuring ib tug tshwj xeeb hyperboloid impeller tsim, nws zoo tshem tawm kev sib xyaw ntawm cov chaw tuag, ua kom muaj kev sib xyaw ua ke, tiv thaiv sedimentation, thiab txhim kho kev hloov pauv oxygen.
Khoom Description
High - lub cev muaj zog, kev ua haujlwm ruaj khov, tiv thaiv IP55 |
 |
Helical iav reducer, compactstructure, tsis tshua muaj suab nrov, hightorque tso zis. |
|
Lub hauv paus muaj zog thiab txhim khu kev qha, txuas lub reducer mus rau kev txhawb nqa. |
|
Hnyav- lub luag haujlwm bearing vaj tse, muab kev txhawb nqa ruaj khov rau lub ntsiab ncej. |
|
Stainless hlau ncej, siab zog, corrosion resistant, xyuas kom meej kev khiav hauj lwm. |
|
Hyperboloid tsim, kev sib xyaw kom zoo, kev siv hluav taws xob tsawg, tus kheej- ntxuav, txo cov deposition. |
Khoom Description

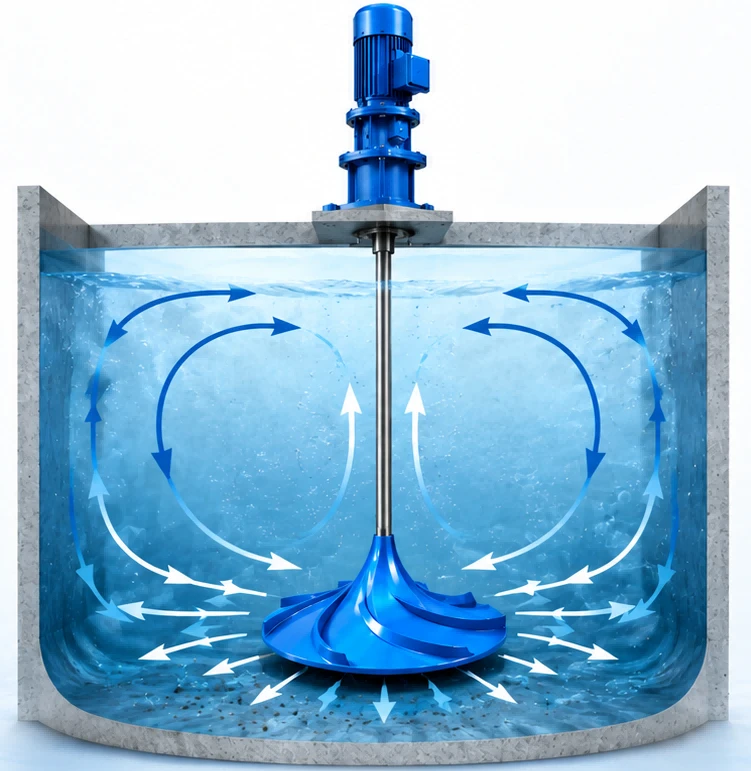

VM-H hyperboloid agitator tsim ib qho peb -dav dej ntws ntws los ntawm kev sib hloov ntawm ib qho tshwj xeeb hyperboloid impeller, ua tiav tus ntoo khaub lig- sib tov nyob rau hauv ob qho tib si axial thiab radial cov lus qhia thiab yog li tshem tawm qhov sib xyaw ntawm qhov chaw tuag.
- Hyperboloid impeller qauv: Lub impeller nto yog tsim los nrog ib tug hyperbolic nkhaus, optimizing dej dynamics thiab txhua yam kev ua tau zoo rau kev sib xyaw.
-
Peb- dej ntws ntws: Lub impeller rotating tsim axial thiab radial ntws, ua ib qho loj- nplai peb- qhov dav dav thoob plaws hauv lub tank.
-
Kev sib xyaw ua ke tsis muaj qhov chaw tuag: Cov qauv tsim tshwj xeeb ua kom cov kua txav mus tas li, tiv thaiv sedimentation thiab tshem tawm cov chaw tuag.
Khoom Description
| Qauv | Impeller txoj kab uas hla (DN) | Ceev (r/min) |
Kev pabcuam cheeb tsam (L/S) |
Hwj chim (kW) |
Tsav hom |
Kev tiv thaiv qib |
Kev ua tau zoo | Propeller | Ncej |
|---|---|---|---|---|---|---|---|---|---|
| VM-H500 | 500 | 40–500 | 65 | 0.5–1.5 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
| VM-H1000 | 1000 | 30–80 | 65 | 1.1–2.2 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
| VM-H1500 | 1500 | 30–60 | 65 | 1.5–3 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
| VM-H2000 | 2000 | 20–42 | 65 | 2.2–3 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
| VM-H2500 | 2500 | 20–40 | 65 | 3–5.5 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
| VM-H2800 | 2800 | 20–30 | 65 | 4–7.5 | Moter + Gearbox | IP55 | IE 3 | FRP/SS 304 | S.S 304/S.S 316 |
Khoom Description
Tuag-Zone-Kev sib xyaw pub dawb
Qhov peb - qhov ntev ntawm cov kauv ntws kom ntseeg tau tias sib xyaw ua ke thoob plaws hauv lub tank, tshem tawm cov chaw nyob ruaj khov.
Zog -Kev Ua Haujlwm Zoo
Qhov loj - cheeb tsam impeller muab kev sib xyaw ua haujlwm zoo nrog kev siv hluav taws xob tsawg, yuav tsum muaj tsawg dua ib -feem peb ntawm lub zog piv nrog cov impellers ib txwm muaj.
Kev sib xyaw yooj yim & Kev tu yooj yim
Muab agitation maj mam tsis ua puas sludge flocs. Nrog rau clog-dawb impeller thiab tsis yooj yim hnav cov khoom hauv qab dej, nws ua kom ntseeg tau kev ua haujlwm thiab kev saib xyuas yooj yim.
Lub neej ua haujlwm ntev
Tsawg-kev ua haujlwm ceev txo qis hnav, thiab corrosion- cov ntaub ntawv tiv taus muab lub sijhawm ntev- ua haujlwm ntev, ua kom lub neej ua haujlwm ntev tshaj 10 xyoo.
Tuam txhab Taw Qhia
Henan Eco Environmental Protection Equipment Co., Ltd. yog lub chaw tsim khoom tshwj xeeb hauv cov khoom siv kho dej khib nyiab.
Nrog cov chaw tsim khoom siab heev, cov kws tshaj lij engineers, thiab kev tswj xyuas nruj, peb muab kev sib xyaw ua ke thiab kev daws teeb meem rau cov neeg siv khoom thoob ntiaj teb.
Peb cov khoom raug xa tawm mus rau Tebchaws Europe, Southeast Asia, Middle East, thiab lwm thaj chaw.
FAQ
Q1: Dab tsi yog daim ntawv thov ntawm hyperboloid agitator?
A: Nws yog tsuas yog siv rau kev sib tov dej khib nyiab, sludge ncua kev kawm ntawv, sib npaug ntawm cov tank, thiab oxidation ditch daim ntaub ntawv.
Q2: Yuav ua li cas xaiv tus haum hyperboloid agitator?
A: Cov qauv sib tov tsim nyog nyob ntawm lub ntim ntim, cov khoom ua kua, lub hom phiaj sib xyaw, thiab kev teeb tsa. Yog tias koj tsis paub meej txog kev xaiv, thov hu rau Luna ntawm WhatsApp: +86 135 2252 5054 rau cov lus qhia tshaj lij.
Q3: Nws puas tuaj yeem hloov kho?
A: Yog. Peb tuaj yeem kho lub zog, txoj kab uas hla impeller, txoj kev teeb tsa, thiab cov khoom siv raws li qhov yuav tsum tau ua.
