Khoom Description

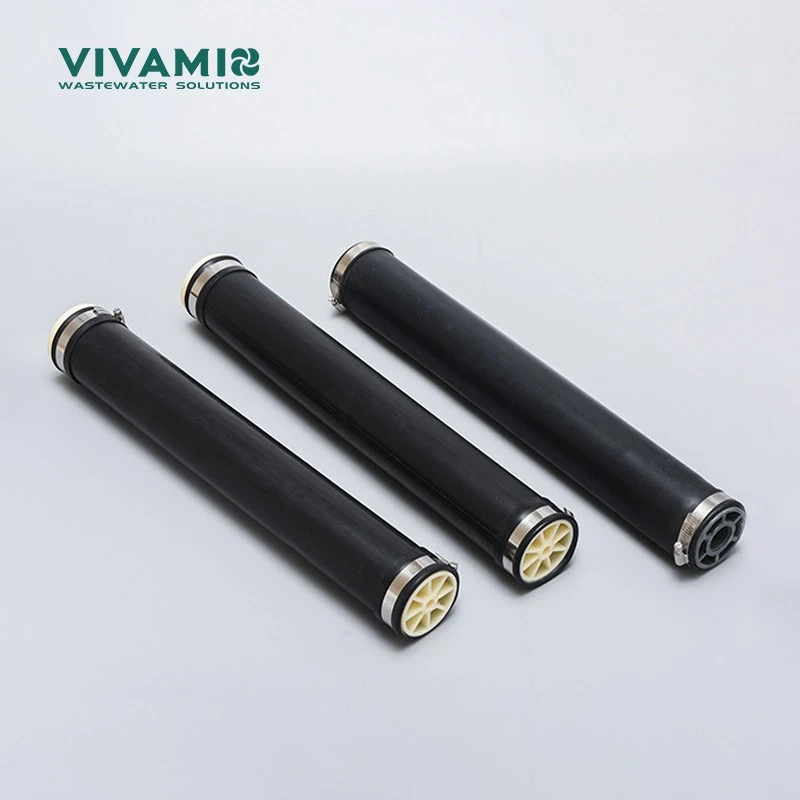

Membrane tube diffuser, tseem hu ua azoo npuas membrane tube diffuser, yog lub siab -cov khoom siv aeration zoo tsim los rau kev kho dej khib nyiab aerobic tanks. Nws hloov ib txwm ua npuas npuas aerators nrog lub elastic membrane raj qauv los tsim ultra- zoo, zoo li huab cua npuas. Peb feem ntau muaj ob hom tseem ceeb: EPDM tubular diffusers rau cov qauv dej khib nyiab thiab PTFE tubular diffusers rau hnyav, corrosive dej khib nyiab.
Core Structure & Txoj Cai Ua Haujlwm
Tag nrho cov diffuser muaj cov yeeb nkab txhawb nqa thiab lub tes tsho elastic membrane. Lub hauv paus kev ua tau zoo nyob ntawm nwsprecision membrane qauv thiab micro- qhov qhib tsim.
Thaum lub tshuab cua pib, compressed cua nyob rau hauv cov yeeb nkab thiab me ntsis nthuav cov roj hmab / PTFE membrane. Ntau txhiab tus ua ntej-slit micro- qhib rau ntawm daim nyias nyias qhov chaw qhib tam sim ntawd, tso cov npuas zoo nyob rau tag nrho lub raj ntev. Qhov no paubpuv -ntau yam huab cua faibthiab zoo heev txhim kho oxygen hloov efficiency.
Thaum lub tshuab tshuab tsis ua haujlwm, cua siab ploj tam sim ntawd. Lub elastic daim nyias nyias yuav shrinks thiab rov pib dua, kaw tag nrho cov micro-tight slits nruj nreem. Qhov no tshwj xeebib -txoj kev kuaj qauvzoo tiv thaiv cov dej phwj tuaj rov qab, sludge infiltration thiab pipeline blockage - daws qhov mob loj tshaj plaws ntawm cov tshuaj aerators.
Qhov zoo ntawm Fine Bubble Membrane Tube Diffuser
-
Uniform zoo npuas aeration: Precision micro-slit qhib thev naus laus zis ua kom muaj npuas ntom ntom tsis muaj qhov chaw aeration tuag.
-
Tsis siv neeg kuaj & tiv thaiv -clogging: Qhov kaw nruj nreem thaum tawm ntawm kev pabcuam, tsis muaj sludge backflow, qis txij nkawm tus nqi.
-

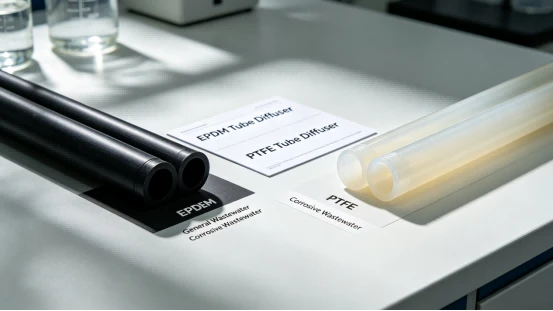

Dual khoom adaptability: EPDM tube diffusernta kev laus tiv thaiv thiab nqi kev ua haujlwm rau cov dej phwj hauv nroog thiab dav dav;PTFE tube diffusermuaj cov tshuaj tiv thaiv corrosion heev rau tshuaj, acidic thiab alkaline khib nyiab.
-
Lub neej ua haujlwm ntev & kev ua haujlwm ruaj khov: Integral tube membrane qauv tiv thaiv huab cua hauv zos thiab deformation.
Common Application Scenarios
Qhov zoo tshaj plaws npuas membrane raj diffuser yog qhov nrov tshaj plaws aeration tov rau aerobic biochemical kev kho mob. Nws yog dav siv nyob rau hauv lub nroog cov dej khib nyiab kho cov nroj tsuag, luam ntawv thiab dyeing factories, zaub mov ua zaub mov, kws factories, tshuaj lom neeg kev lag luam dej pov tseg tej yaam num, thiab dej dej ecological restoration.
Technical Tsis muaj
| Khoom siv | Qauv | Inner tube txoj kab uas hla (mm) | Membrane txoj kab uas hla (mm) | Membrane thickness (hli) | Bubble diameters (mm) | Cua khiav ntau (Nm³ / h) | Kev siv oxygen ntawm 5m (%) | Max. Ua haujlwm kub |
|---|---|---|---|---|---|---|---|---|
| ABS + EPDM | D65-500 | 63 | 65 | 2 | 0.8-2 | 1.7-6.8 | 23-32 | 80 |
| ABS + EPDM | D65-750 | 63 | 65 | 2 | 0.8-2 | 3.4-17 | 23-32 | 80 |
| ABS + EPDM | D90-1000 | 88 | 90 | 2 | 0.8-2 | 6.5-32.6 | 23-32 | 80 |
| ABS + Silicone | D65-500 | 63 | 65 | 2 | 0.8-2 | 1.7-6.8 | 23-32 | 100 |
| ABS + Silicone | D65-750 | 63 | 65 | 2 | 0.8-2 | 3.4-13.6 | 23-32 | 100 |
| ABS + Silicone | D65-1000 | 63 | 65 | 2 | 0.8-2 | 3.4-17 | 23-32 | 100 |
| ABS + Silicone | D90-1000 | 88 | 90 | 2 | 0.8-2 | 6.5-32.6 | 23-32 | 100 |
Khoom Description
VIVA-MIX yog sub-brand ntawm Henan ECO Environmental Equipment CO., Ltd.
Peb lub Hoobkas nyob hauv lub nroog keeb kwm nto moo --- Nanjing, Jiangsu Province, tshwj xeeb hauv kev tsim cov khoom siv submersible, ntsug mixers thiab aeration mechanical & devices for wastewater treatment applications. Coj los ntawm peb lub tswv yim ntawm "Technology Leads, Quality Survival," peb txuas ntxiv kawm thiab tshawb fawb cov thev naus laus zis tshiab thiab cov txheej txheem tshiab los ntawm cov khoom lag luam sab saum toj thiab thoob ntiaj teb. Los ntawm kev sib koom ua ke cov kev nce qib no nrog kev ua haujlwm ntawm qhov chaw ua haujlwm, peb tau tsim cov khoom tshwj xeeb uas sawv tawm hauv kev kho dej khib nyiab.
Peb cov khoom tseem ceeb muaj xws li lub zog -txuag submersible mixers & recirculation twj, txheem submersible mixers & recirculation twj, mixers tsim tshwj xeeb rau MBBR fillers, hyperbolic tov khoom & lwm yam paddle hom ntsug mixers, submersible (jet) aerators thiab ntau yam membrane hom cua diffuser nrog rau cov khoom siv installation. Tag nrho peb cov khoom tau raug kuaj xyuas los ntawm cov chaw kuaj xyuas lub tebchaws. Xyoo kaum xyoo dhau los, peb cov cuab yeej siv tau dav siv hauv cov chaw kho dej hauv nroog thiab cov dej khib nyiab hauv ntau qhov chaw, ua pov thawj nws cov kav ntev thiab kev lag luam kev ntseeg tau. Peb tau xa peb cov khoom mus rau ntau tshaj 100 lub teb chaws thiab cheeb tsam thiab txaus siab rau lub koob npe nrov ntawm peb cov neeg siv khoom.
Txog niaj hnub no, peb lub tuam txhab tau txais plaub qhov kev tsim tawm patents thiab nees nkaum-tsib daim qauv siv hluav taws xob, nrog cov ntawv pov thawj ntawm ISO zoo tswj qhov system, ISO ib puag ncig kev tswj hwm, ISO txoj haujlwm kev noj qab haus huv thiab kev nyab xeeb.
Kev mob siab rau kev ua tus kheej tsis tu ncua- txhim kho thiab txhim kho cov khoom lag luam, Peb tos ntsoov yuav taug kev ntawm kev tiv thaiv ib puag ncig nrog koj!
Cim npe nrov: Tuam Tshoj Membrane Tube diffuser manufacturers, lwm tus neeg, Hoobkas
